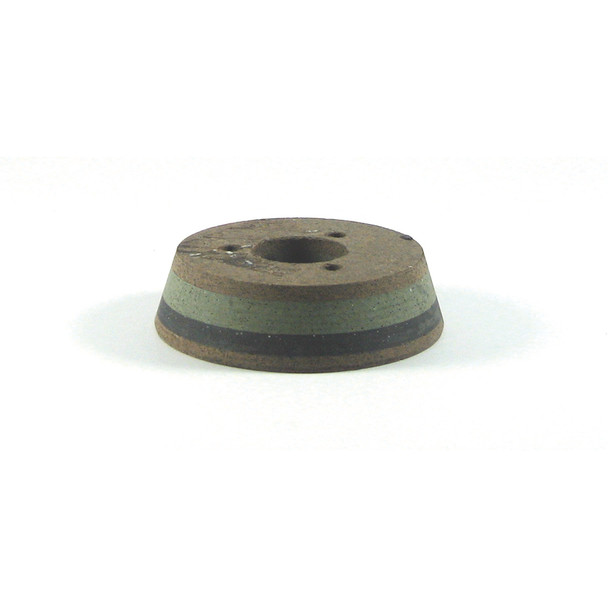

CHD6555 - Cox Clutch Drive Cone - Late Style With Three Outer Mounting Holes

A aftermarket replacement component, made to match original specifications for a reliable fit. Fits: - Cox selected models including but not limited to New Generation, New ERA, C1332 [13/32, 13- 32](13 hp models 9505G and 9506C years 2005 to 2007) ride-on lawn mower models. Replaces OEM: CC2095NG, CC2095GNE, CC3095J, CC3095L For early type clutch cone options, with one pin hole (not suited to the models listed above), use our part numbers CHD5335 (non-genuine) or CHD6954 (genuine). When installing a new Cox drive cone please insure the drive plate surfaces are in good condition with no grooves. It is necessary to deglaze the drive plate surface so the new cone will not slip generating excessive heat and damaging the drive cone. As the new cones can no longer contain asbestos over heating will cause premature failure. A quick way to deglaze the drive plates is to use a 4" disc sander with medium grit paper. This can also be done quickly at each service to reduce drive failure. It is only necessary to take the shine off the surface to give the cone a surface to grip to. Any grooves will need to be machined in a lathe. Drive Parts Cox Dimensions: Thickness: 1", 25.4 mm; Inside Diameter: 1.18", 30 mm; Outside Diameter: 3.74", 95 mm OEM Cross-Reference: CC2095GNE, CC2095NG, CC3095J, CC3095L Also suits: Cox
